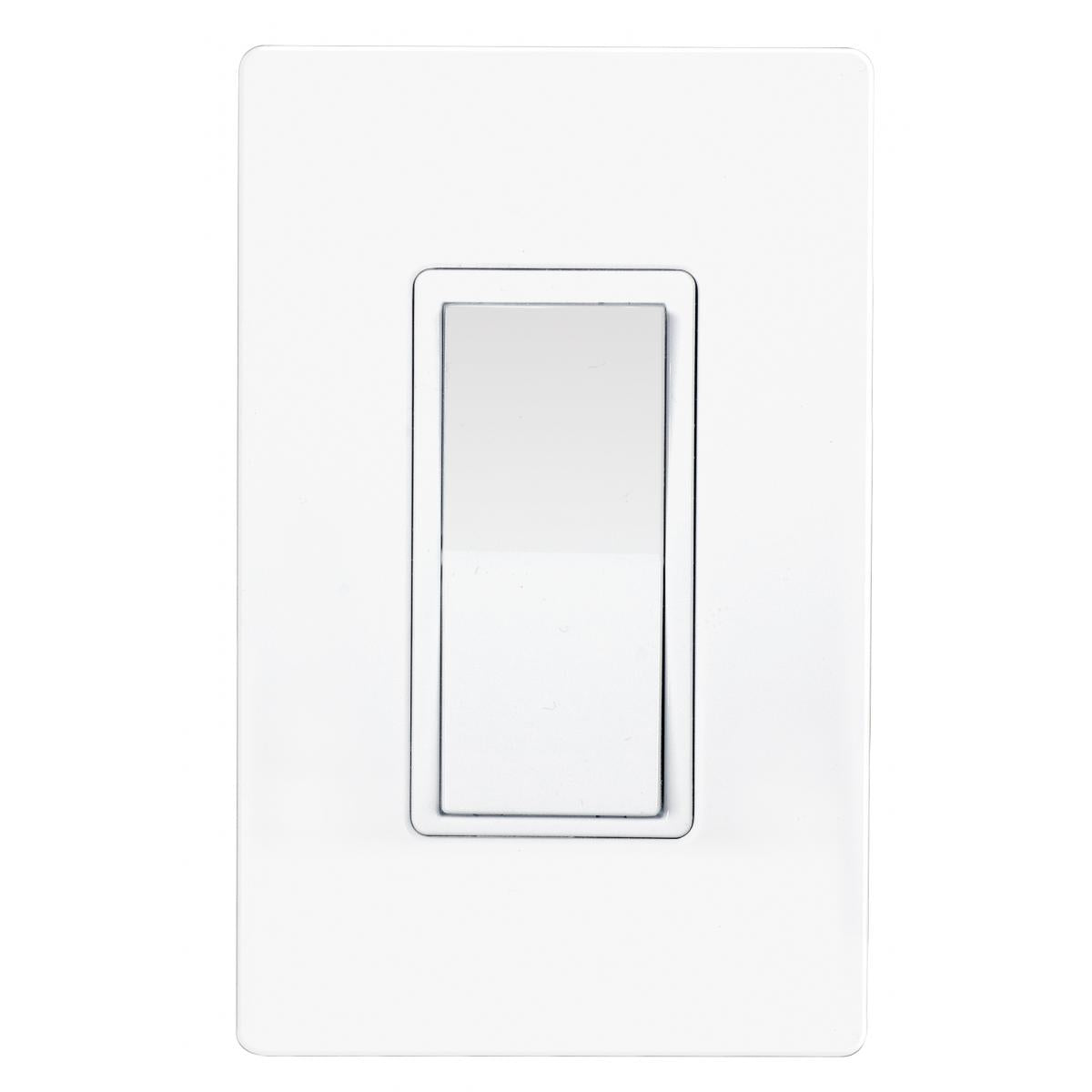

Smart Home Gear Model #86-104 Three-Way Auxiliary Switch in White Finish

by Nuvo Lighting
Save 38%
$39.95
$24.95



Features:

  • 3 way switch that works with #86-102 wall
  • switch or #86-103 wall dimmer.
  • Fits standard wall plate. (not included)
  • Reliable and affordable way to add 3 way or 4 way switch.
  • Up to 3 86-104 auxiliary switches (5 way) can be used with one in wall switch or dimmer
  • Connects and controls through traveler wire when used with 86-103 dimmer, 86-104 can also be used to control dimming
  • Multiple scene control using double and triple tap
  • Provides instant manual status change to
  • controller
  • Supports Central Scene command class
  • Supports screw and wire terminals

General:

  • Operating Temperature 32° F to 104° F
  • Storage Temperature -4° F to 140° F
  • Storage Humidity 80%
  • Dimensions Body: 2.8"x1.71"x1.41" Yoke: 4.13"x2.13"x.076"
  • Wire Terminals Traveler, Neutral, Ground. Requires neutral and traveler wire
  • Minimum Hole for Wire Accepts #12 AWG (0.081" dia) Doesn't Accept #8 AWG (0.1285"dia)
  • Wire Type Copper only
  • Clamp Parts Copper or plated aluminum
  • Wire Binding Screws UL 486a/b: Minimum Dia=#6(.138) Max Threads/inch = 36
  • Color Munsell N9 Apple White
  • Material PC, Type 6485
