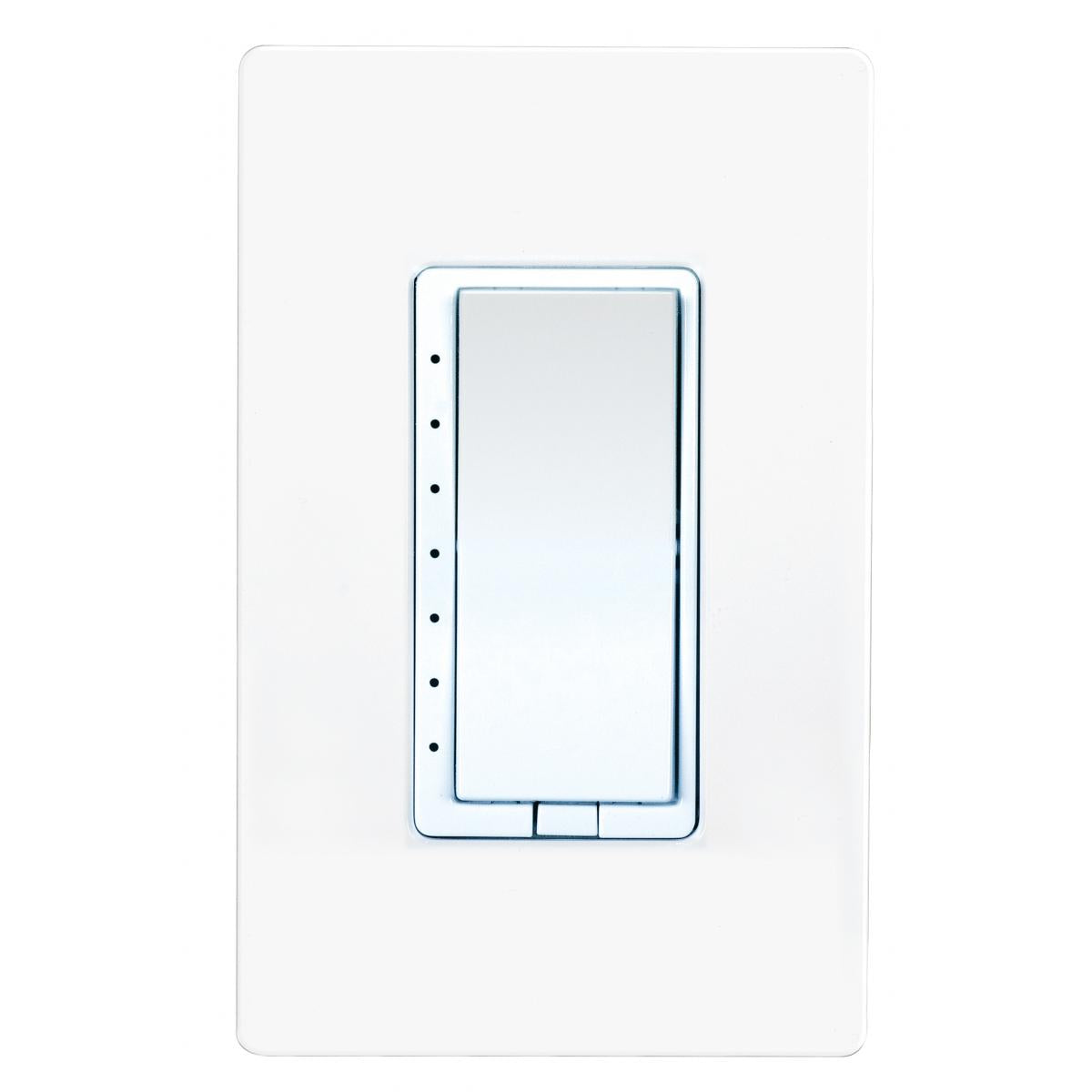

Smart Home Gear Model #86-103 In-Wall Dimmer in White Finish

by Nuvo Lighting
Save 43%




  • Works with incandescent and most dimmable fluorescent (CFL), or LED lighting
  • 7 LEDs to indicate ON/OFF/Dimming level status Fits standard wall plate (not included)
  • Z-Wave Plus Certified
  • GROUP/ALL enabled, if supported by controller Multiple scene control using double and triple tap
  • Provides instant manual status change to controller
  • Supports Central Scene command class Over-The-Air firmware upgrade available, if supported by controller
  • Supports Network Wide Inclusion (inclusion through a repeater), if supported by controller Poweredby Sigma Design 500 Series moduleinside
  • Functions as a Z-Wave signal repeater Supports screw and wire terminals



    • Operating Temperature 32° F to 104° F
    • Storage Temperature -4° F to 140° F
    • Storage Humidity 80%
    • Input Voltage 120 VAC RMS
    • Input Frequency 60Hz
    • Maximum Output Load Incandescent (600W, single gang),
      Dimmable CFL/LED (150W)
    • Wire Terminals Requires neutral
    • Fuse 10A
    • Z-Wave Frequency for USA and Canada 908.4Mhz at 40kps, 916Mhz
      at 100kps
    • Wireless Range (controller & repeater) 130 ft. at open air, 1 meter high, LOS
    • Modulation FSK/GFSK
    • Tx Power from IC setting 2 dbm
    • Rx Sensitivity at 40 kps -99 dbm
    • Rx Sensitivity at 100 kps -91.8 dbm
    • Standby Current 25mA
    • Body:2.8"x1.71"x1.41"
    • Yoke: 4.13"x2.13"x.076"
    • Line, Load, Ground, Traveler, Neutral
      Accepts #12 AWG (0.081" dia) Doesn't Accept #8 AWG (0.1285"dia)
      Copper or plated aluminum Copper only
      UL 486a/b: Minimum Dia=#6(.138) Max Threads/inch = 36
      Munsell N9 Apple White PC, Type 6485
