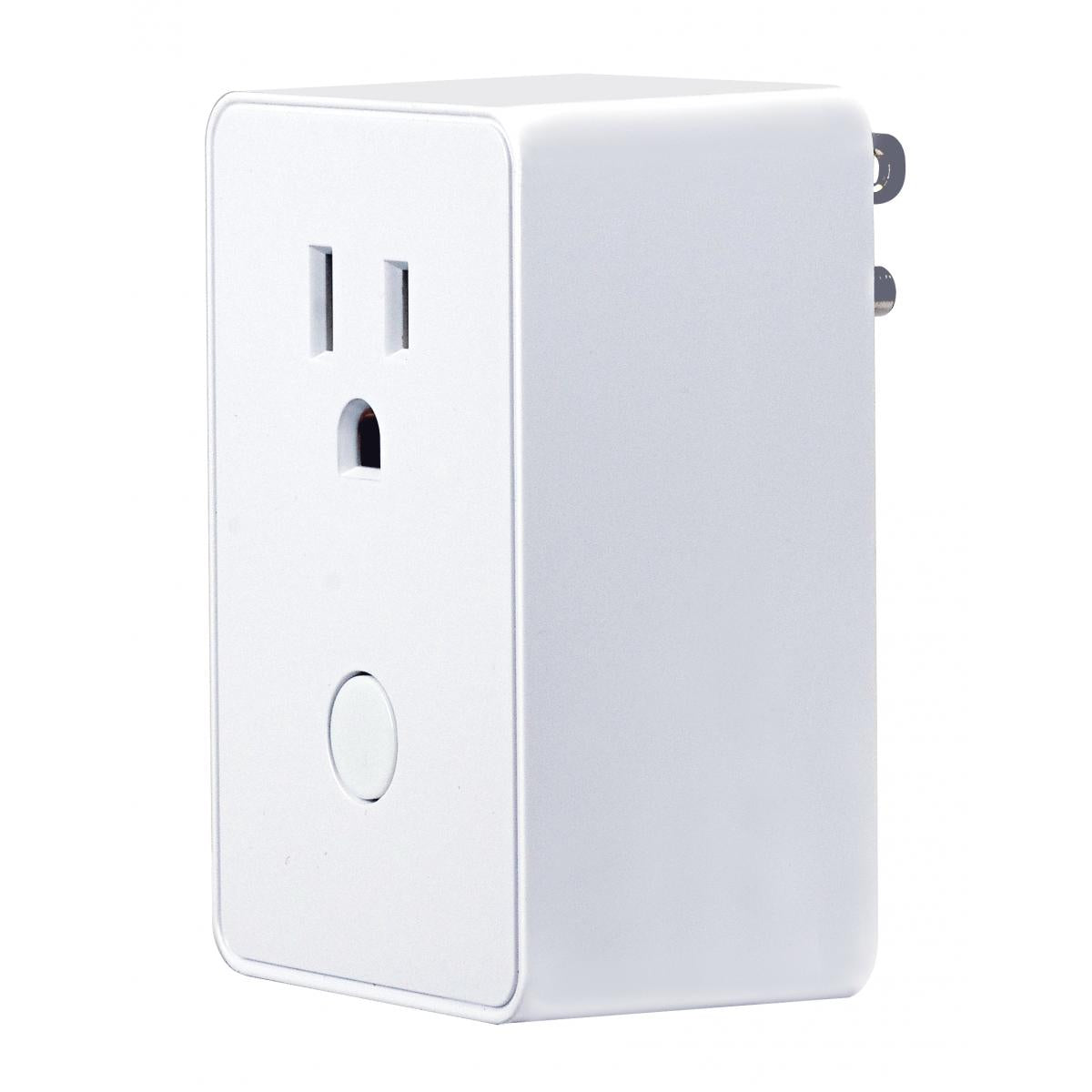

Smart Home Gear Model #86-100 Plug-In Appliance Module in White Finish

by Nuvo Lighting
Save 43%


  • Turns ON/OFF incandescent, CFL, or LED lamps, and AC operated electrical appliances
  • LED back-lit Key for manual ON/OFF and status indicator
  • Z-Wave Plus Certified
  • Controls appliances up to 15A
  • Functions as Z-Wave signal repeater
  • Grounded 3-pin AC power receptacle to enhance safety
  • Compact design - does not block the 2nd AC outlet
  • Over-The-Air firmware upgrade available, if supported by controller
  • Supports Network Wide Inclusion (inclusion through a repeater), if supported by controller
  • Powered by Sigma Design 500 Series module inside




    • Operating Temperature 32° F to 104° F
    • Storage Temperature -4° F to 140° F
    • Storage Humidity 80%
    • Electrical Ratings
    • Input Voltage 120 VAC RMS
    • Input Frequency 60Hz
    • Maximum Output Load 900W incandescent, 200W CFL/LED, ½ horsepower
    • motor and 15A, 1800W resistive load
    • Fuse 0.5A
    • Z-Wave Frequency for USA and Canada 908.4Mhz at 40kps, 916Mhz at 100kps
    • Wireless Range (controller & repeater) 130 ft. at open air, 1 meter high, LOS
    • Modulation FSK/GFSK
    • Tx Power from IC setting 2 dbm
    • Rx Sensitivity at 40 kps -99 dbm
    • Rx Sensitivity at 100 kps -91.8 dbm
    Dimensions Body: L3.27" X W2.13" X H1.5"
    With plug: L3.27" X W2.13" X H2.32"
    Color Munsell N9 Apple White
    Material PC, Type 6485
